EZ Flexy-Flyer Cardstock Model

Designed by Ron Caudillo

Ron Caudillo designed this simpler but realistic 1/10 scale model better suited for the younger kids. It is cut from a sheet of 65# cardstock that was printed using a color printer. All you need is an Xacto knife, scissors,straight edge and a little Elmer's glue.

You can either click on the Jpegs below and then download the full size 8-1/2 x 11 picture or download the Adobe PDF's by right clicking on the Adobe Icon.

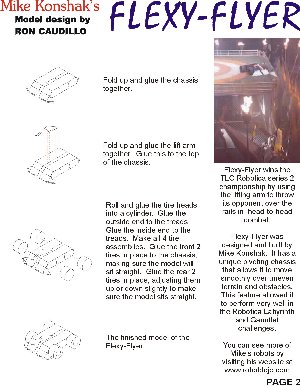

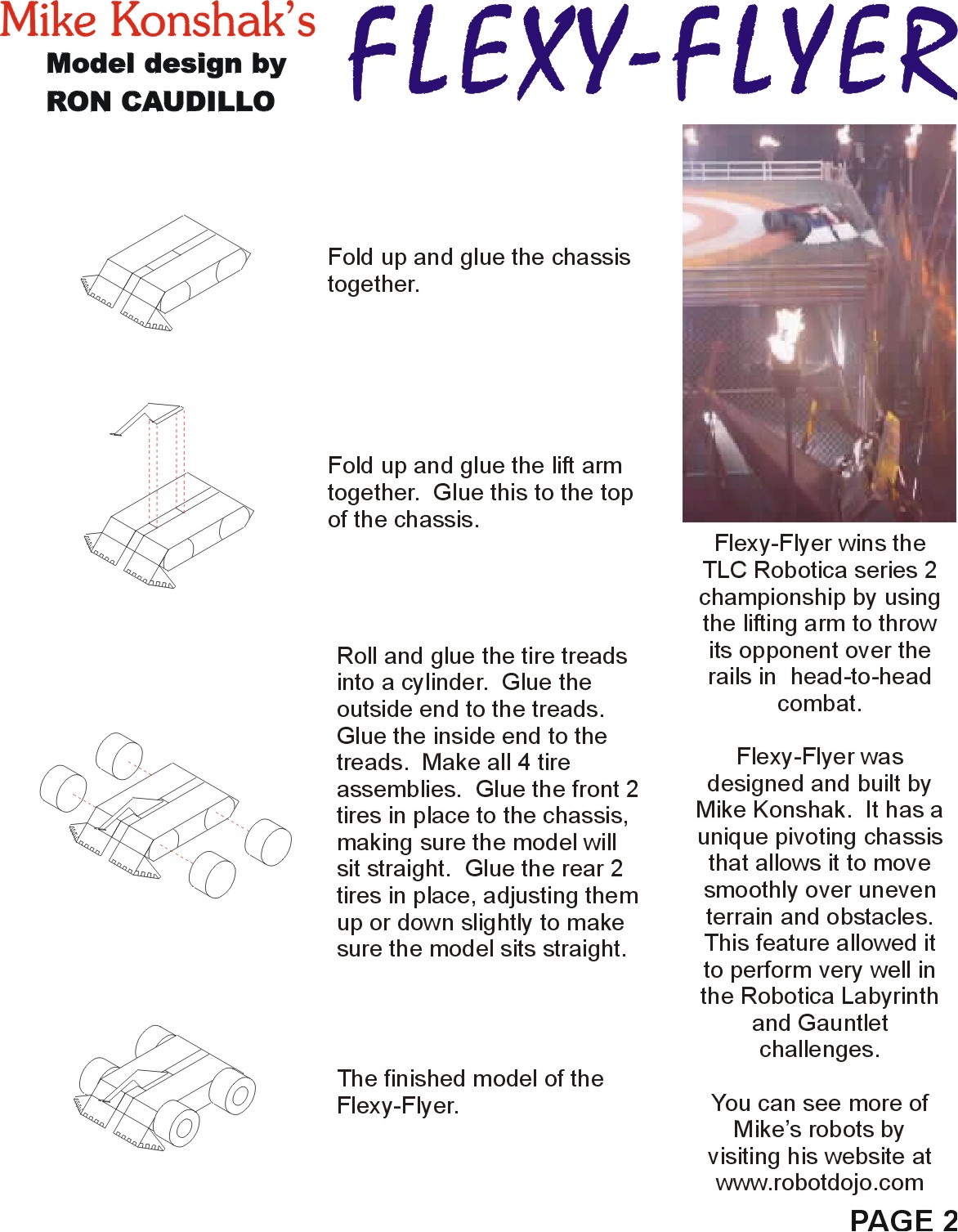

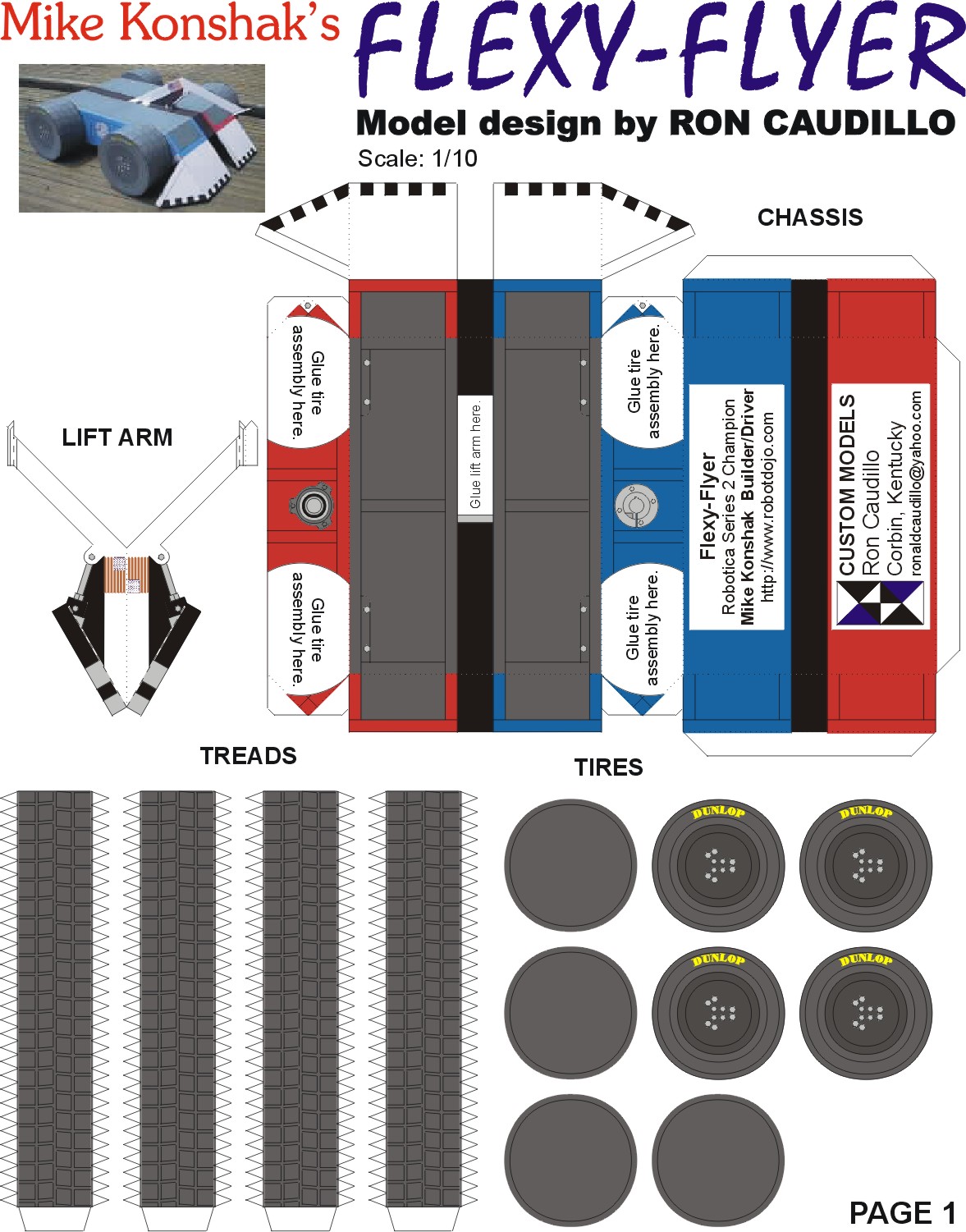

 EZ Flexy Flyer model - page 1 & 2 (849K)

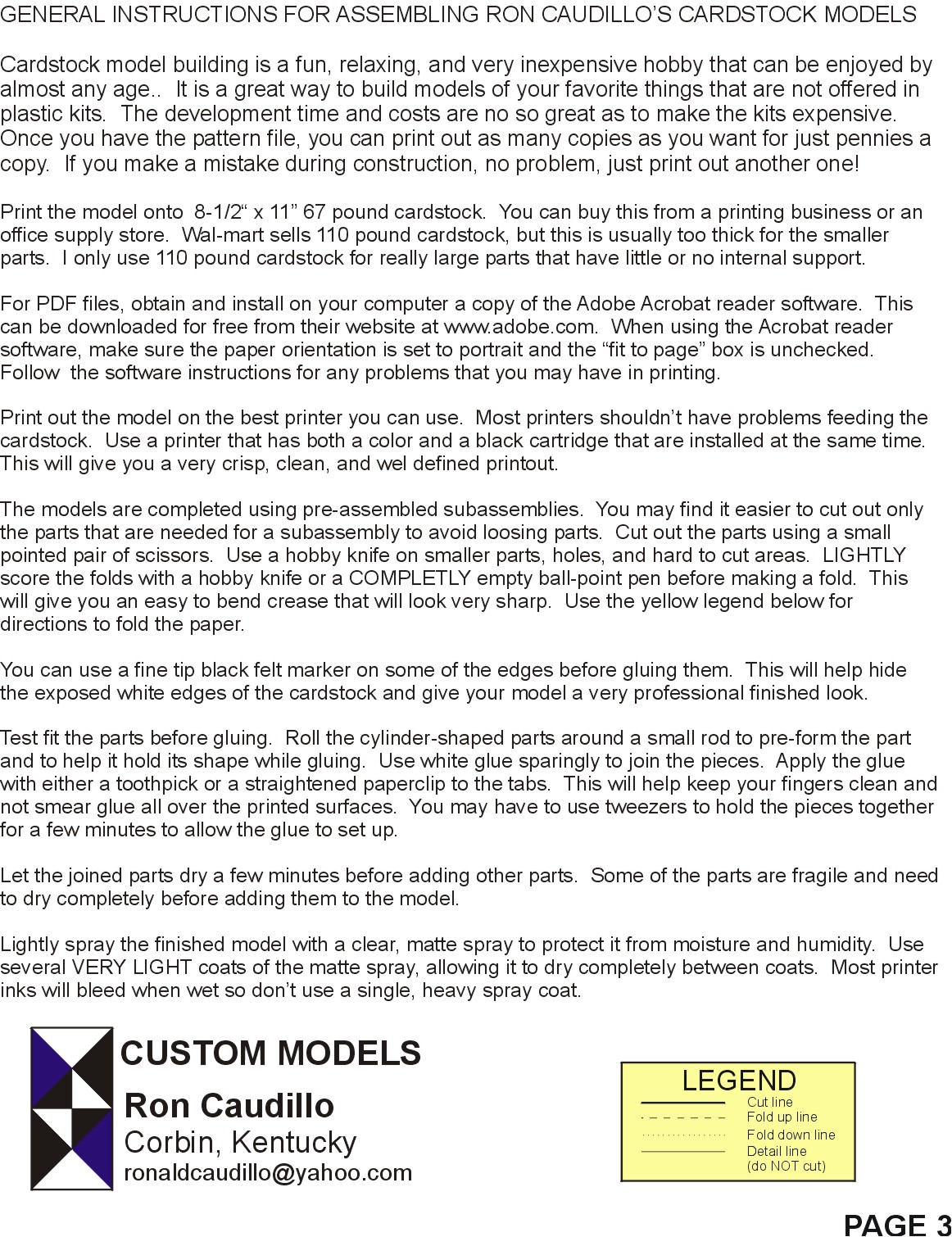

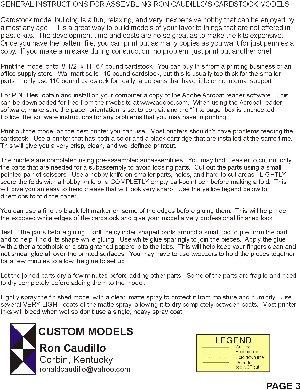

Building the EZ Flexy-Flyer model

Pictures Copyright © 2001-2002 Mike Konshak. All Rights Reserved.
Models Copyright © 2002 Ron Caudillo. All Rights Reserved.
